How Peening Intensity Is Influenced by Process Parameters
Why It’s Crucial to Understand the Variables
Peening intensity is the key indicator of how much energy is transferred to a surface during shot peening. But this intensity doesn’t depend on a single setting. Instead, it results from a complex interaction between multiple process parameters.
A small change in air pressure, media size, or even impact angle can push the intensity out of specification, putting quality, and compliance, at risk.
To maintain repeatable, certified results, understanding the influence of each parameter is essential.
The Core Variables That Affect Peening Intensity
1. Air Pressure or Turbine Speed
- Higher pressure = higher shot velocity = higher intensity
- Airblast systems can be regulated directly via pressure settings
- Wheel blast systems are adjusted via wheel speed
Tip: For airblast systems, stability in compressed air delivery is critical. Pressure drops from other equipment can reduce peening quality.
2. Media Size and Hardness
- Larger shot transfers more energy → higher intensity, but coarser surface
- Smaller shot penetrates less deeply → lower intensity, finer finish
- Harder media impacts more aggressively, leading to higher intensity, but coarser surface
Shot size is standardized in ranges (e.g., S170, S230, CW14) and should match application requirements.
3. Impact Angle
- A desirable angle should be close to 90 degrees, but never 90 degrees, because of the ricochets. Anywhere between 70 and 85 degrees would be OK
- Lower angles reduce energy transfer and create more shear than compression
In complex geometries, the angle can vary across the surface, leading to non-uniform peening.
4. Stand-Off Distance (Nozzle-to-Target)
- If the nozzle is too close, peening can be too aggressive and localized
- If it's too far, shot energy dissipates and intensity drops
Even a 10 cm change in distance can reduce arc height by over 15%, depending on pressure.
5. Exposure Time (Does NOT Affect Intensity)
Contrary to common assumptions, longer exposure time increases coverage—not intensity.
- Intensity is determined by the initial energy per impact
- Time only determines how completely the surface is treated
This is why arc height readings are taken at set durations when building saturation curves.

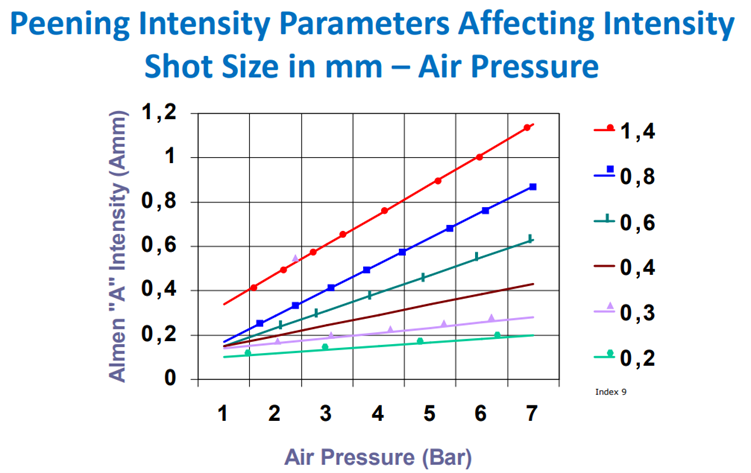

Visual Summary
Additional Factors to Consider
| Factor | Influence |
| Media flow rate | Inconsistent flow causes intensity drift |
| Nozzle wear | Enlarged or deformed nozzles reduce velocity |
| Humidity | Can cause media clumping, affecting flow and impact energy |
Product Tip: Use FlowMaster and PASV Smart Valves to maintain constant media flow and ensure closed-loop control for stable intensity.
Tolerances in Critical Industries
Aerospace and automotive applications often require:
- Narrow intensity ranges, e.g., 0.006–0.008 A
- Verified saturation curve procedures (SAE J443)
- Certified strips and documented process control
In these cases, even minor drift in parameters must be corrected immediately.
Conclusion: Consistency Comes from Understanding
Peening intensity isn’t just about setting a pressure and launching media—it's about managing a system of interdependent variables. Operators and engineers must understand how every factor contributes to the outcome.
A change in any single parameter can push a process out of tolerance, even if everything else appears correct. Don’t wait until defects or audit non-conformities force a correction, bring in an expert early to secure your process and your reputation.
