Laser-Measured Almen Strips: Precision and Traceability for Modern Peening

Shot peening is only as effective as its process control. Even when peening parameters (pressure, distance, media, etc.) are correctly set, process validation relies heavily on one key component: the Almen strip. This small, spring-steel test piece measures peening intensity, but if its dimensions or flatness deviate, the entire validation becomes unreliable.

Traditional Almen strips require manual flatness checks, and operators must record arc height readings manually, a method prone to human error and traceability issues.

Enter the next generation: laser-measured Almen strips, a game-changer in shot peening quality control.

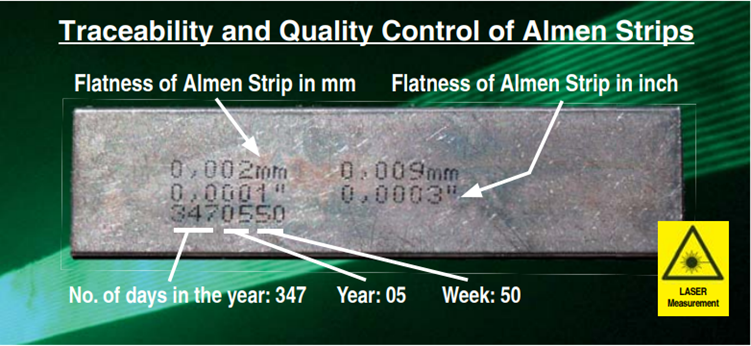

Laser-measured Almen strips are pre-inspected strips that come with:

• A unique serial number laser-etched directly on the strip
• Pre-measured flatness (before peening) using high-precision laser equipment
• An optional printed label indicating certification level, material batch, and even flatness value

These strips are produced under tight process control and conform to:

• SAE J442
• AMS 2430 / 2432
• Nadcap-approved practices

PA Certified Laser-Measured Almen Strips

• Available in A, N, and C types
• With or without certification label
• Packaged with traceability certificates

Each strip is measured using a non-contact laser system that ensures:

• Flatness deviation < 0.001 mm
• Zero mechanical deformation during inspection
• Reliable baseline before peening

This reduces variability in arc height caused by strip warping, burrs, or inconsistencies in strip thickness.

With QR codes or serial numbers on each strip, you can:

• Track which operator used the strip
• Link the reading to a specific batch, machine, or component
• Simplify quality audits and Nadcap compliance

Use Case: In aerospace applications, traceability is mandatory. A logged arc height result without proof of certified strip quality may be rejected during an audit.

Laser-measured strips integrate seamlessly into digital shot peening systems, allowing:

• Scan-and-log workflows
• Elimination of manual data entry
• Digital recording of arc height + serial number + operator + time stamp

Some systems can even block machine operation if an uncertified strip is used or the arc height is out of tolerance.

These can be color-coded or labeled with part numbers, e.g., "PA-A-STRIP-CERT2-2025"

Laser-measured strips are even more powerful when paired with:

• Digital Almen gauges (e.g., PA Almen Gage Industrial+)
• Automated data logging tools
• PA Shot Peening software for saturation curve plotting and archiving

Together, they create a fully traceable, closed-loop shot peening system.

In industries where safety and compliance are non-negotiable, laser-measured Almen strips offer a simple way to eliminate error and boost traceability. They are not just quality assurance tools, they’re critical enablers of precision manufacturing.

By moving from manual to automated strip management, you protect your processes, satisfy audits, and deliver consistent performance across every peened component.
