Central to the main shot blasting process is a complex assembly of components working in unison to deliver optimal blasting results. This article will detail the functions and importance of the feed tube, control cage, impeller, blade, and bare wheel, highlighting their roles and the significance of their interplay in shaping the blast pattern and hot spot.
Key Components of Shot Blast Wheel
1. Feed Tube
The feed tube is the entry point for abrasive media into the shot blast wheel. It directs the media into the impeller, ensuring a consistent and controlled flow. The proper functioning of the feed tube is essential for maintaining the efficiency and effectiveness of the blasting process.
- Function: Directs abrasive media into the impeller.
- Importance: Ensures consistent and controlled media flow for effective blasting.
2. Control Cage
The control cage plays a pivotal role in determining the direction and spread of the abrasive media. By adjusting the position of the control cage, operators can fine-tune the blast pattern, targeting specific areas of the workpiece. This precision control is vital for achieving desired surface finishes and maximizing efficiency.
- Function: Directs and controls the spread of abrasive media.
- Importance: Allows fine-tuning of the blast pattern for targeted and efficient blasting.

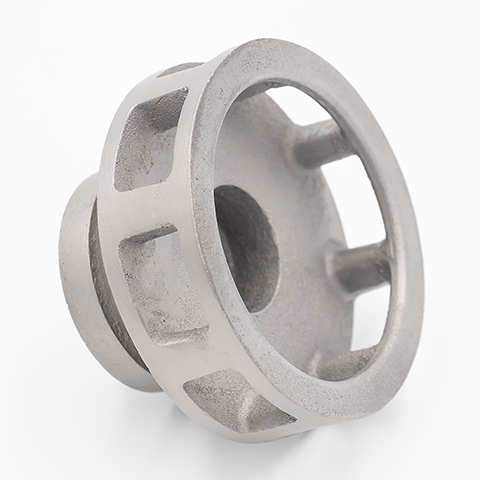

3. Impeller
The impeller is responsible for accelerating the abrasive media and directing it towards the blades. It spins at high speeds, creating the centrifugal force necessary to propel the media through the shot blast wheel. The design and condition of the impeller significantly impact the performance and longevity of the blasting process.
- Function: Accelerates and directs abrasive media towards the blades.
- Importance: Provides the necessary force to propel the media, influencing performance and efficiency.
4. Blades
Blades are the components that physically propel the abrasive media towards the workpiece. They are designed to withstand high levels of wear and tear, as they are constantly in contact with the abrasive materials. The number, shape, and condition of the blades directly affect the blast pattern and the overall efficiency of the shot blast wheel.
- Function: Propel abrasive media towards the workpiece.
- Importance: Determine the blast pattern and efficiency, requiring durability and precision in design.
5. Bare Wheel
The bare wheel is the core component of the shot blast wheel assembly, around which other parts are mounted. It provides the structural integrity and support needed for the entire system to function correctly. The balance and condition of the bare wheel are crucial for maintaining smooth operation and reducing wear on other components.
- Function: Provides structural support for the shot blast wheel assembly.
- Importance: Ensures smooth operation and longevity of the entire system.
Optimizing Shot Blast Wheel Performance
The performance of a shot blast wheel hinges on the optimal functioning and interplay of its components. Regular maintenance and careful monitoring of parts like the feed tube, control cage, impeller, blades, and bare wheel are essential for maintaining efficiency and extending the system's lifespan. Proper alignment, timely replacement of worn parts, and accurate adjustments of the control cage can significantly enhance the blast pattern and effectiveness of the process.
